Gridec records power quality parameters while your electrical system is running, and inspects the installation on site. The report gives you the findings and our recommendation.
The event may be over before anyone can inspect it
A voltage event can last a few cycles. An hour later a spot check reads normal and there is nothing left on site to find. A continuous recording captures it, with a time stamp and the load conditions before and after.
02
Where monitoring helps
The sector matters less than the question. Monitoring is worth doing when supply conditions are affecting equipment or output, or when a decision has to rest on measurements.
03
Seven-day monitoring
Power quality data is recorded during actual operation and interpreted in the context of the issue being investigated.
The monitoring period is selected to obtain a representative record of operating conditions. We recommend a longer period when the issue is intermittent or the operating cycle needs more time.
7Days of monitoring
24/7Continuous data recording
1Engineering report
Measured under actual load
Before anything is connected, we agree what needs verifying, on which equipment, and what the answer is for.
Measurements are carried out while the electrical system operates under representative operating conditions.
We read the record against the question we started with, and write up the conclusions and the recommended next steps.
Measurement results, engineering analysis and conclusions provide the basis for further technical decisions.

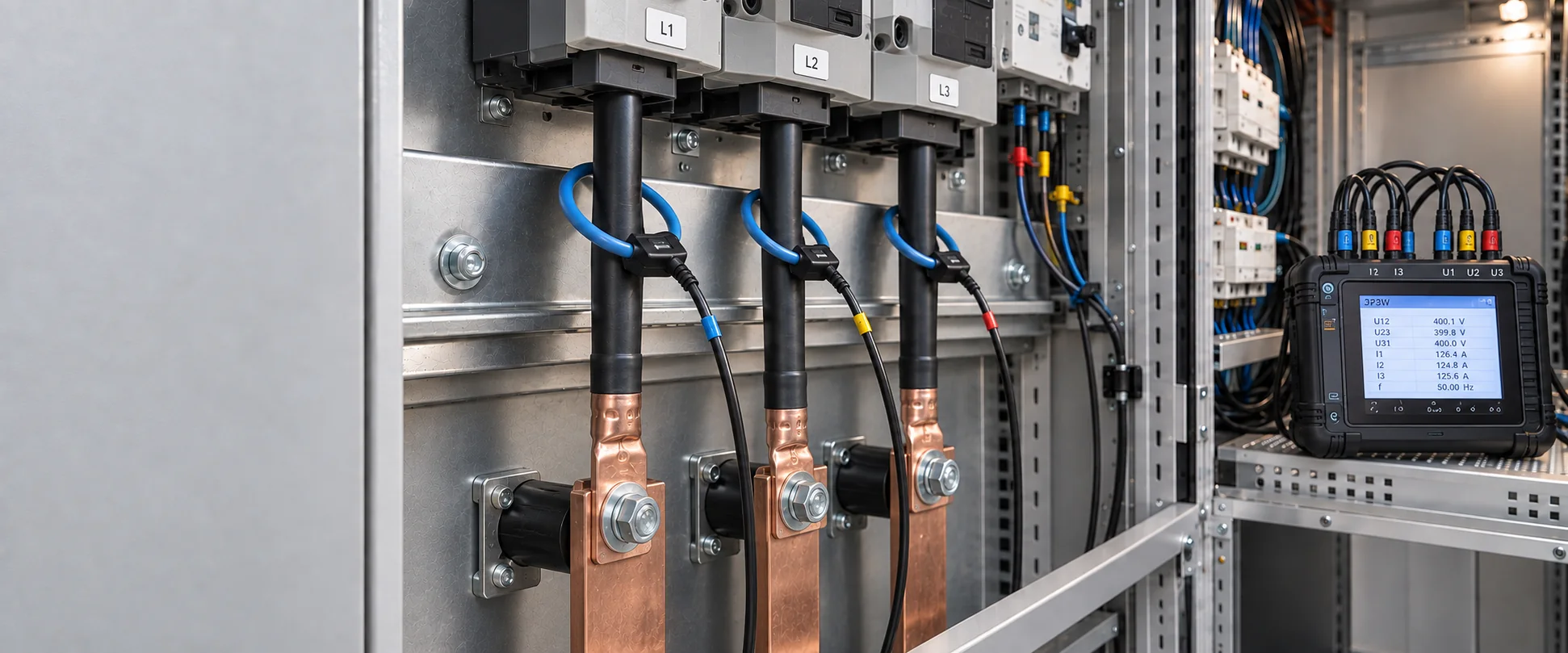

Power quality parameters are measured using IEC 61000-4-30 Class S methods. Harmonic and interharmonic measurements are evaluated using IEC 61000-4-7 where applicable.
Measurement scope and points
Monitoring period and operating context
Recorded events and trends
Engineering interpretation
Recommended next steps
Where the record does not support a conclusion, the report says so.
05
Measure before you decide
Measurement changes a decision only while that decision is still open. Once the scope is signed and the price agreed, the same data just explains what went wrong.
RECURRENT FAILURES
Equipment that keeps failing may be damaged by the supply, or by the way it is loaded. The two need different fixes. Recording under load tells you which.
ACCEPTANCE & WARRANTY
Before you sign off, measurements under representative load show how the installation behaves in normal operation. Anything found then is still the contractor’s to fix, under the contract or the warranty.

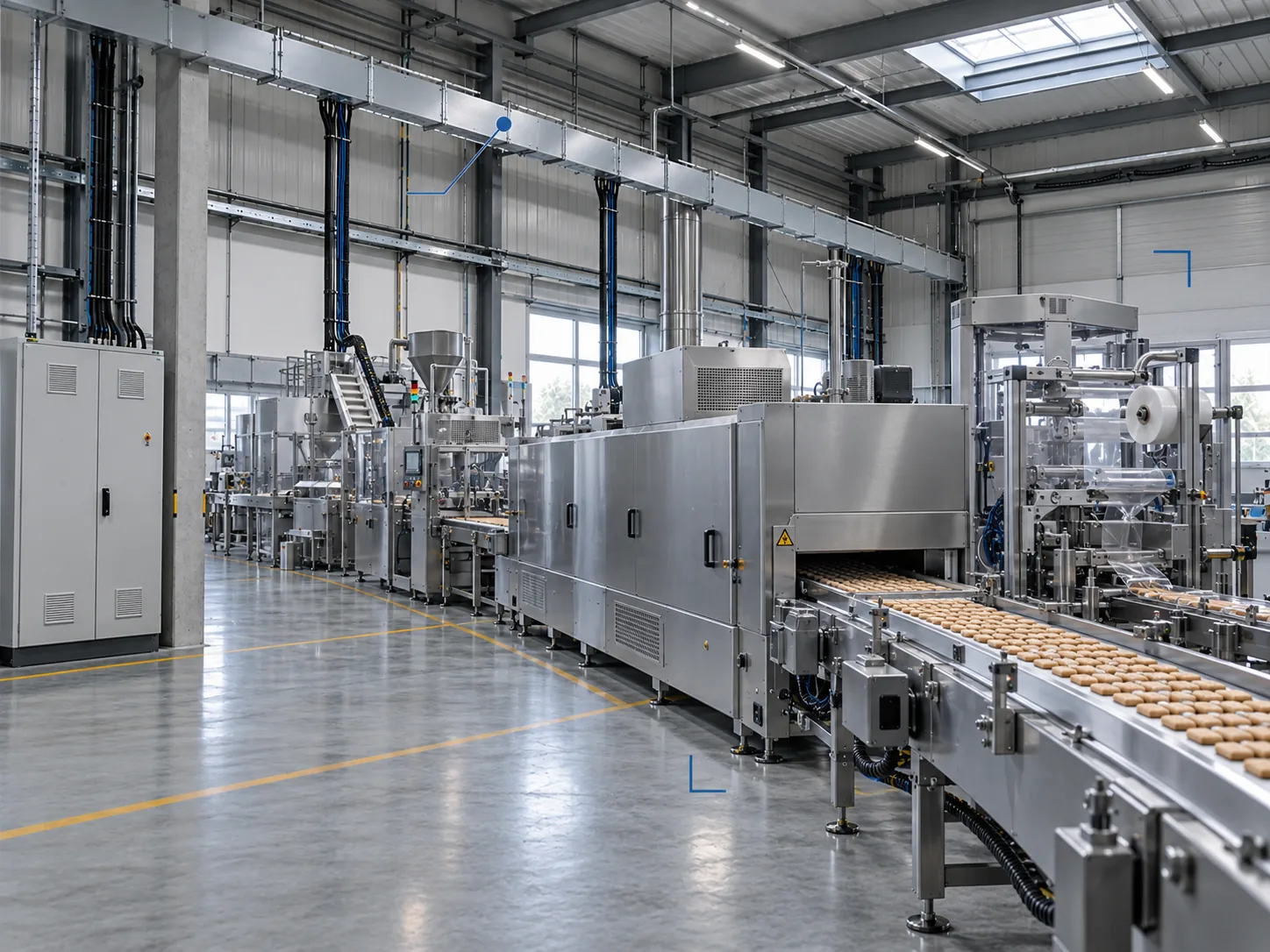

EXPANSION
Solar PV, new machines or a second shift all land on whatever the existing installation is already doing. Monitoring gives the design a measured starting point instead of nameplate ratings.
ACQUISITION
You cannot see a building’s electrical condition on a site visit. A week of measurement shows what the installation is carrying, and gives you something concrete when you negotiate the price.
06
What we measure
Voltage & Current
Harmonics & Interharmonics
Flicker
Dips & Swells
Unbalance
Power & Energy
Events
Risk Indicators
The last cell is not a measurement: risk is what we read from the other seven.
07
About us
Gridec is an independent electrical engineering company based in Yerevan. We are a small team focused on specialised engineering work and long-term cooperation with our partners.
WHY WE STARTED
Specialist measurements and analysis should not require a permanent in-house team or equipment that spends most of its time unused. Gridec gives companies access to both when the need arises.
HOW WE WORK
A useful investigation starts with the question that needs answering. We measure the system under real operating conditions and base the conclusion on what the data shows, whether that points to a problem or confirms normal operation.
WHAT WE ARE BUILDING
We are building Gridec in Armenia as a small engineering firm whose conclusions hold up when someone checks them. We would rather grow slowly than lose that.
08
RMS VOLTAGE · TYPICAL TRACE
What the report can address
Describe the electrical issue
✓
Thank you.
We will review the information and contact you to clarify the measurement scope.
